When discharging sewage from the SB24 type fast-draining straight-through and high-low Strainer, open the sewage valve and turn the handwheel to clean without opening the sealing basket. Save time and effort, and easy to clean.
The newly launched intelligent Strainer series products, in addition to all the functions of ordinary Strainer, also have the functions of providing replacement and cleaning Strainer information and remote sound and light alarm. Its basic principle is to use the pressure difference between the inlet and outlet of the fluid flowing through the Strainer to make the pressure difference information in the intelligent device to act, and the red cylinder at one end of the intelligent device will pop up or alarm information, indicating that the Strainer is blocked and needs to be replaced or cleaned. It overcomes the shortcomings of ordinary Strainer today that cannot indicate the degree of blockage of the Strainer in time, causing interruption of flow, burning of pumps or misjudgment of Strainer blockage, wasting manpower and material resources, and is an ideal replacement product. If it is installed in series at the inlet of the pump or other parts of the system pipeline, it can not only prolong the service life of the pump and other equipment, but also ensure the safety of the entire system.

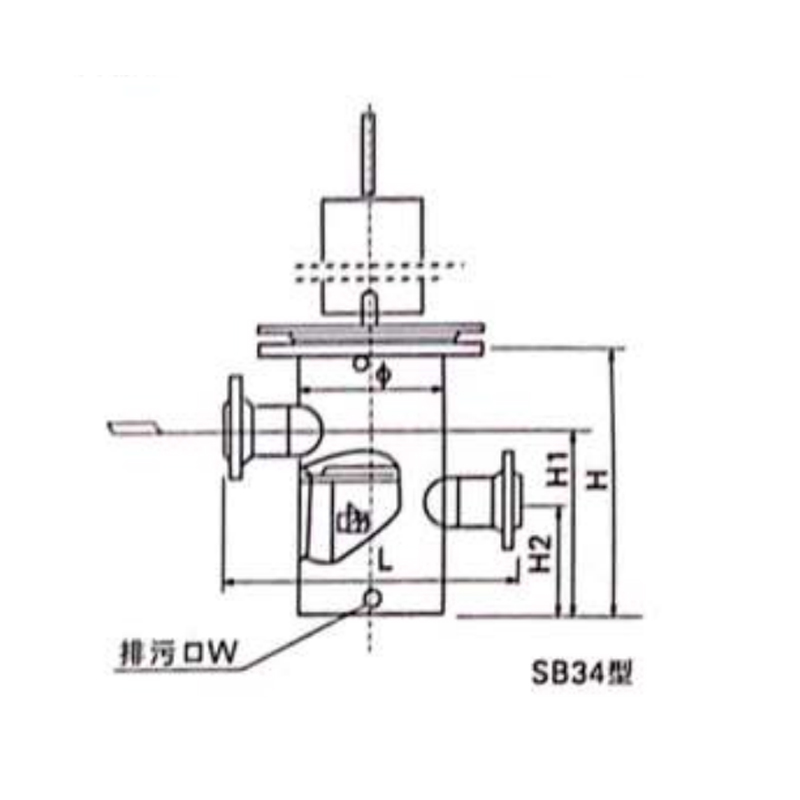

Main Connection Dimensions
Nominal diameter(DN) |
φ |
L |
H |
H1 |
H2 |
W |
20/25 |
76 |
220 |
280 |
180 |
110 |
1/2 |
32 |
76 |
220 |
285 |
180 |
110 |
1/2 |
40 |
108 |
260 |
340 |
220 |
120 |
1/2 |
50 |
108 |
260 |
340 |
220 |
120 |
1/2 |
65 |
140 |
330 |
400 |
270 |
160 |
1/2 |
80 |
168 |
340 |
460 |
320 |
180 |
1/2 |
100 |
219 |
420 |
550 |
390 |
220 |
3/4 |
125 |
273 |
480 |
630 |
450 |
260 |
3/4 |
150 |
273 |
500 |
720 |
530 |
310 |
3/4 |
200 |
325 |
560 |
900 |
670 |
390 |
3/4 |
250 |
426 |
660 |
1070 |
800 |
480 |
3/4 |
300 |
478 |
750 |
1360 |
1040 |
540 |
|
350 |
500 |
800 |
1430 |
1070 |
570 |
|
400 |
530 |
850 |
1500 |
1100 |
600 |
|
450 |
580 |
940 |
1550 |
1150 |
620 |
|
500 |
630 |
1050 |
1600 |
1200 |
640 |
|
600 |
800 |
1380 |
2000 |
1300 |
700 |
|
