Wholesale Z40W American and Japanese Standard Gate Valve

Home / Product / Gate Valve / Z40W American and Japanese Standard Gate Valve
View All Projects

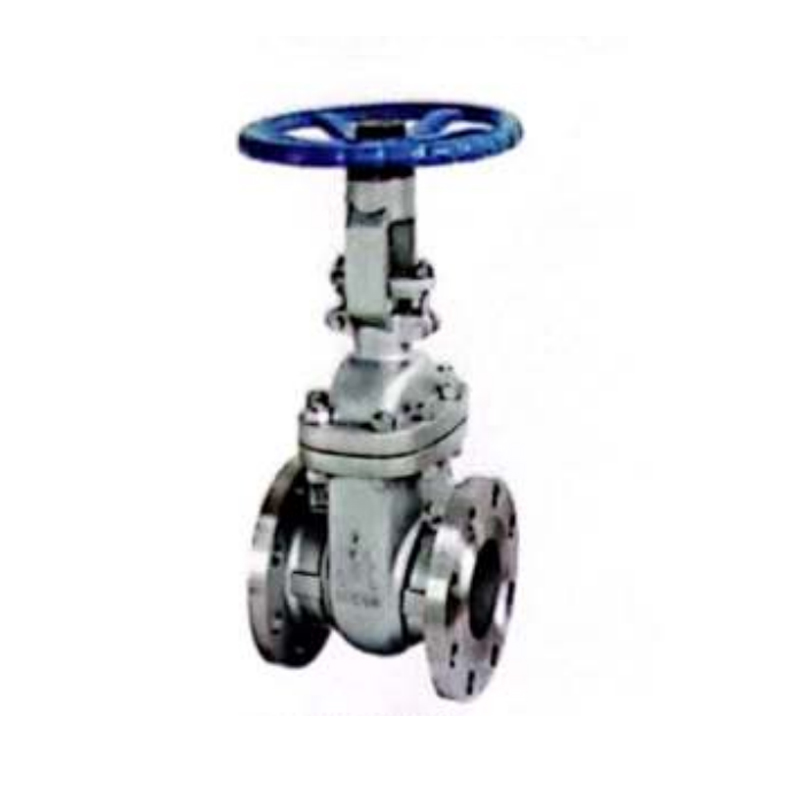

Z40W American and Japanese Standard Gate Valve

Z40W American and Japanese Standard Gate Valve

Stainless Steel Flange Gate Valve is a type of industrial valve that is widely used in various applications due to its durability, strength, and resistance to corrosion. This valve is particularly favored for its ability to control the flow of fluids in pipelines where high standards of hygiene and resistance to aggressive chemicals are required.

  • Z40W American and Japanese Standard Gate Valve
  • Z40W American and Japanese Standard Gate Valve
Get A Quotation
PREV：No previous articleNEXT：Carbon Steel Bolted Bonnet Flanged Gate Valve

Main Parameter Specification
Design and Manufacture: Cast Steel Gate Valve to API 600(ISO 10434), API 6D; Cast Stainless Steel Gate Valve to API 603, API 600
Inspection and Test:API598,API600 or API 6D
End Flange Dimension:ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS>24)
BW end Dimension: ASME B16.25
Face to Face and End to End: ASME B16.10
Pressure-temperature ratings: ASME B16.34

Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter:2"~36"(DN50~DN900)
End Connection: RF, RTJ, BW
Pressure range: Class150~900(PN16~PN150)
Working temperature:-29ºC~+560ºC
Operation: Hand wheel, Gear, Electric Actuator, etc.

FAQ
  • Stainless Steel Flange Gate Valve

    Stainless Steel Flange Gate Valve is a type of industrial valve that is widely used in various applications due to its durability, strength, and resistance to corrosion. This valve is particularly favored for its ability to control the flow of fluids in pipelines where high standards of hygiene and resistance to aggressive chemicals are required.

  • Carbon Steel Bolted Bonnet Flanged Gate Valve

    The Carbon Steel Bolted Bonnet Flanged Gate Valve is a type of industrial valve that is widely recognized for its robustness and reliability in controlling the flow of various fluids. This valve is particularly suited for applications where a high level of durability and resistance to wear are required.

  • Z40W American and Japanese Standard Gate Valve

    Stainless Steel Flange Gate Valve is a type of industrial valve that is widely used in various applications due to its durability, strength, and resistance to corrosion. This valve is particularly favored for its ability to control the flow of fluids in pipelines where high standards of hygiene and resistance to aggressive chemicals are required.

Zhejiang Xiongxiang Valve Co., Ltd.
Zhejiang Xiongxiang Valve Co., Ltd.
Zhejiang Xiongxiang Valve Co., Ltd. was established in 2017 and is a Wholesale Z40W American and Japanese Standard Gate Valve Supplier and Custom Z40W American and Japanese Standard Gate Valve Company. It is a company specializing in the production of valves and filters.

With high-quality products, good reputation and high-quality service, our products sell well in more than 20 provinces, cities and autonomous regions in China. We sincerely cooperate with domestic and foreign merchants for win-win cooperation, common development and common prosperity.

In the future, Zhejiang Xiongxiang Valve will continue to uphold the concept of "quality-oriented, customer first", continue to innovate, work together with global partners for win-win results, and create a trustworthy fluid control brand!
