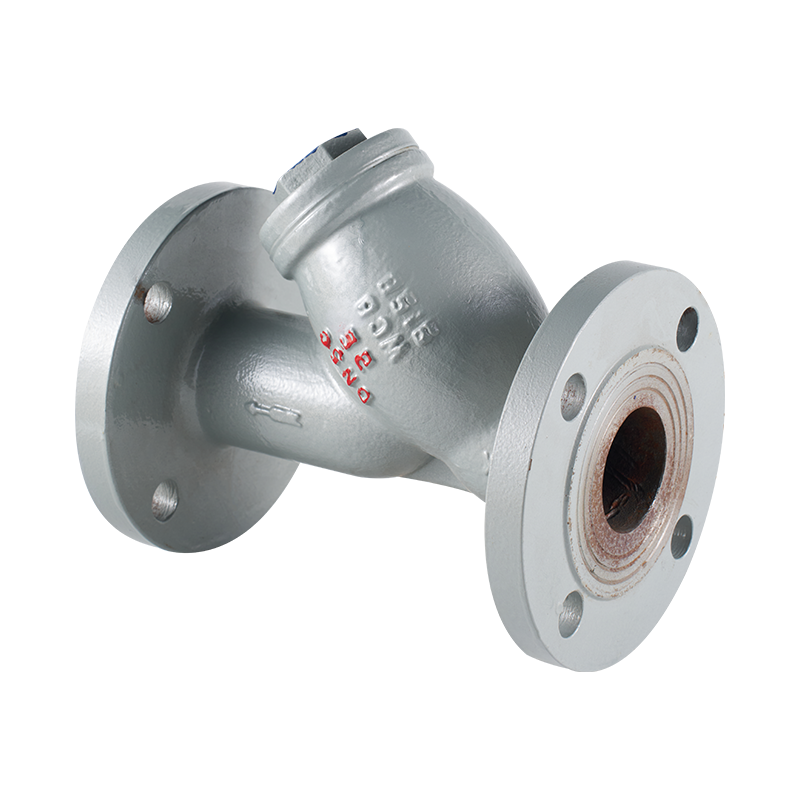

Features:
1. Y-Pattern
2. Bolted Cover With Drain Plug
3. Perforated Stainless Steel Screen
4. Flanged ends & Butt welding Ends are Available
5. ANSI standard & DIN standard are Available
Description:
Size: 1/2''-24''(DN15-DN600)
Working Pressure: ANSI 150LB-2500LB, DIN PN10-PN320
Filter screen: 20-160 meshes
Shell wall thickness, ANSI B16.34
Pressure-temp. rating: ANSI B16.3
End flanges: ANSI B16.5
Butt welding ends: ANSI B16.25
Suitable Temp.: -29ºC~150ºC~350ºC
Suitable Medium: Water, Natural Gas, Oil, etc.
The filter is an indispensable device in the pipeline system for conveying media. Its function is to remove mechanical impurities in the passing media to protect the accessories on the equipment pipeline from wear and blockage. At present, my country basically uses R406 type decontaminant, which is large in size, strong in the negative force, inconvenient to install, and takes a long time to discharge sewage, and the cost is high, which fails to meet the needs of the majority of users. In response to the above problems, our factory has made improvements and developed three series of filters, which are basically the same in appearance (Y-type), and the internal parts are all made of stainless steel, which is hard and durable. The filter is small in size, fine in filter mesh, small in resistance, high in efficiency, easy to install and maintain, and low in cost, which can meet the needs of various pipelines.
Technical Parameters
| Nominal pressure |
1.6-2.5MPa |
| Test pressure |
2.4MPa |
| Working temperature |
-80℃-400℃ |
| Valve body |
cast steel, stainless steel |
| Filter |
stainless steel |
| Structure |
shell, drain cover, filter element, filter, stud |
Main Connection Dimensions
| DN |
L |
H |
| 25 |
160 |
80 |
| 32 |
180 |
90 |
| 40 |
205 |
100 |
| 50 |
210 |
130 |
| 65 |
250 |
160 |
| 80 |
285 |
180 |
| 100 |
310 |
185 |
| 125 |
350 |
230 |
| 150 |
380 |
260 |
| 200 |
480 |
340 |
| 250 |
550 |
400 |
| 300 |
610 |
440 |
| 350 |
700 |
530 |
| 400 |
850 |
570 |
| 500 |
900 |
650 |
