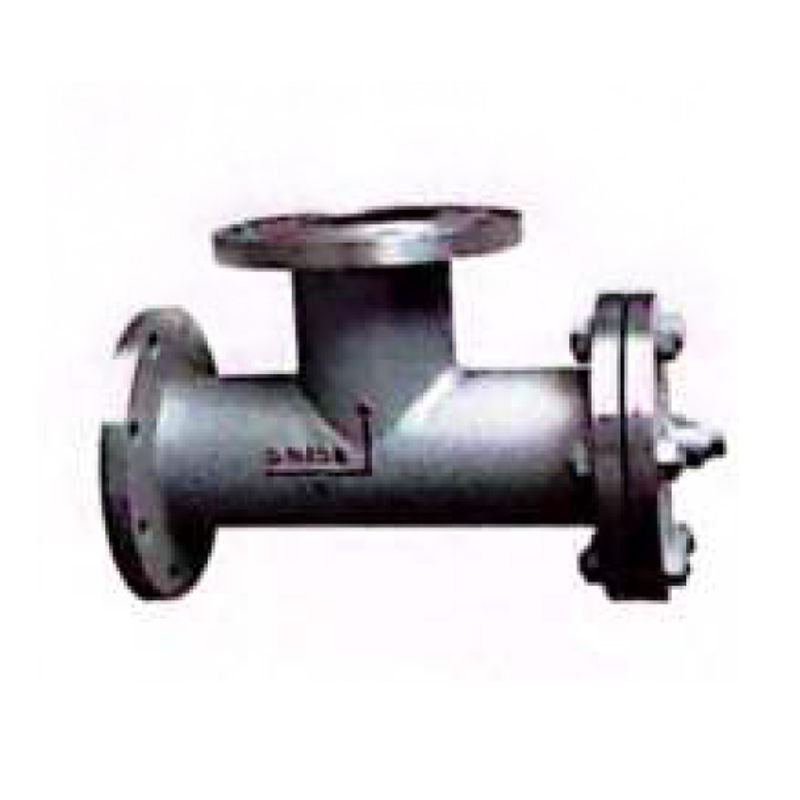

The SB14 Flange Connection Straight-Through T-type Strainer is a pipeline filtration device designed to remove solid impurities from fluids, ensuring the smooth operation of downstream equipment.
The SB14 Flange Connection Straight-Through T-type Strainer is a pipeline filtration device designed to remove solid impurities from fluids, ensuring the smooth operation of downstream equipment.
Key Features:
1. Flange Connection
- Conforms to standard flange dimensions (e.g., ANSI, DIN, or GB standards) for easy installation in pipeline systems.
2. Straight-Through T-Type Design
- Low-pressure drop due to the straight-through flow path.
- The T-shaped body allows for easy cleaning or replacement of the filter screen without disassembling the entire pipeline.
3. Stainless Steel Filter Screen
- Typically made of 304 or 316 stainless steel for corrosion resistance.
- Available in different mesh sizes (e.g., 20-100 mesh) to suit various filtration needs.
4. High-Temperature & High-Pressure Resistance
- Suitable for water, oil, gas, steam, and other industrial fluids.
- Common pressure ratings: PN10, PN16, PN25 (or Class 150, 300).
5. Blowdown Valve Option
- Some models include a blowdown valve for easy debris removal without disassembly.
Typical Applications:
- HVAC systems (chilled water, condenser water)
- Petrochemical pipelines
- Steam & gas distribution
- Water treatment & industrial fluid systems
Standards & Materials:
- Body Material: Cast iron (WCB), ductile iron, carbon steel, stainless steel (CF8/CF8M).
- Flange Standard: ANSI B16.5, DIN 2501, GB/T 9119, etc.
- Seal Material: NBR, EPDM, PTFE (for high-temperature applications).
Maintenance:
- The filter screen can be removed and cleaned manually or via a blowdown mechanism (if equipped).
- Regular inspection is recommended to prevent clogging.
Would you like specific details on dimensions, pressure ratings, or ordering codes for a particular standard?
Nominal diameter(DN) | Size | b | |
L1 | L2 | ||
50 | 230 | 115 | R3/8" |
65 | 260 | 130 | R3/8" |
80 | 280 | 140 | R3/4" |
100 | 350 | 175 | R3/4" |
150 | 450 | 225 | M20 1.5 |
200 | 500 | 250 | M20 1.5 |
250 | 590 | 295 | M20 1.5 |
300 | 680 | 340 | M20 1.5 |
350 | 790 | 395 | M22 1.5 |
400 | 850 | 425 | M22 1.5 |
500 | 1000 | 500 | M22 1.5 |
600 | 1200 | 600 | M22 1.5 |
