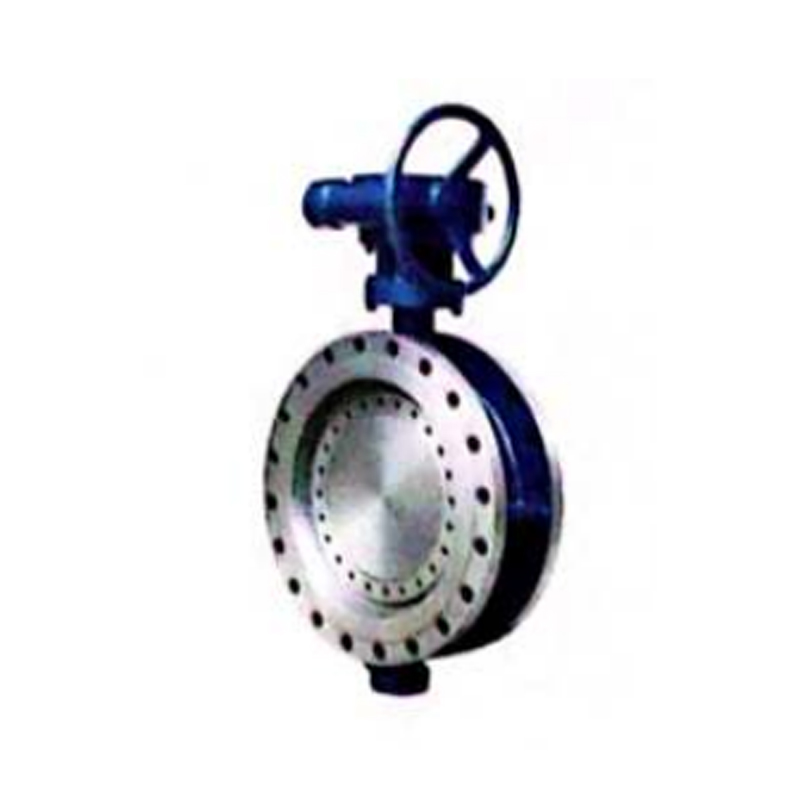

Carbon Steel Precision Processing of Butterfly Valve with Handwheel

The Carbon Steel Butterfly Valve with Handwheel is an important valve used for controlling the flow of fluids in various industries, including water treatment, HVAC, oil, and gas. The valve features a disc that rotates to control fluid flow and is operated by a handwheel, which provides manual control for opening and closing the valve.

Precision Processing:

Precision processing is crucial in the manufacturing of the Carbon Steel Butterfly Valve with Handwheel. High-quality carbon steel is chosen for the valve body due to its strength, durability, and resistance to corrosion, making it ideal for handling a wide range of fluids, including water, oils, and gases. The precision processing ensures that all components, including the valve body, disc, stem, and seat, are machined to exact specifications. This machining process ensures that the components fit together seamlessly and operate without leaks.

CNC Machining: The valve body and components are typically machined using computer numerical control (CNC) technology. This allows for high precision in shaping the parts and ensures consistent quality in large production runs. CNC machining helps achieve tight tolerances, especially for the seat and disc, which must fit precisely to prevent leaks and ensure smooth operation.

Casting and Forging: The valve body of the Carbon Steel Butterfly Valve is usually cast or forged from carbon steel, depending on the valve's size and pressure requirements. Casting allows for complex shapes, while forging provides enhanced material strength, especially for high-pressure applications.

Assembly and Testing: Once the components are machined, they are assembled and subjected to rigorous testing. Pressure tests are conducted to ensure the valve can withstand the desired operating conditions without leaking. Additionally, the handwheel mechanism is carefully installed to provide easy and precise manual operation.

The Double Acting Butterfly Valve is an advanced valve designed to control the flow of fluids and gases in industrial systems, offering enhanced performance compared to standard butterfly valves. The double-acting mechanism allows the valve to be operated more efficiently, providing a higher level of control in both small and large-scale applications.

Operating Principle:

The Double Acting Butterfly Valve features a design that uses two actuators (usually pneumatic or hydraulic) to rotate the valve's disc. Unlike single-acting valves, which rely on a spring for the return action, double-acting valves use both actuators to control both the opening and closing movements of the valve. This dual actuator setup ensures that the valve can operate more quickly and with greater precision, making it ideal for applications where rapid and accurate flow control is essential.

Actuators: In a double-acting butterfly valve, the actuators are typically pneumatic or hydraulic. These actuators apply pressure to the valve stem to rotate the disc, with one actuator used to open the valve and the other to close it. The pressure supply to the actuators can be adjusted to provide precise control over the valve's position.

Quick Response: One of the key benefits of the Double Acting Butterfly Valve is its quick response time. Since both actuators control the movement of the disc, the valve can open and close rapidly, making it suitable for systems that require fast, reliable flow regulation. This is especially important in industries like oil and gas, where flow control needs to be adjusted frequently and precisely.

Durability and Efficiency: The design of the Double Acting Butterfly Valve ensures that it can handle higher pressures and temperatures than a standard butterfly valve. The use of actuators also reduces the manual labor required to operate the valve, making it more efficient for larger systems where valves may need to be operated remotely or automatically.
